PORT OF MAGDALLA

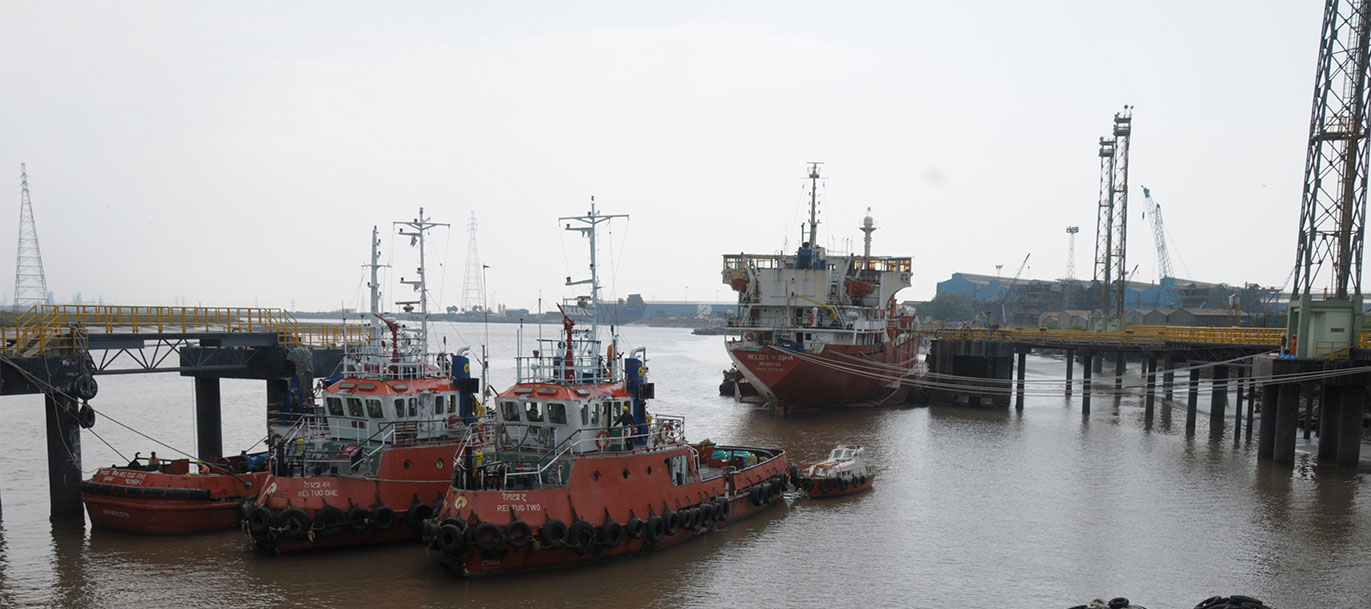

Magdalla Port is located on the Eastern side of the Gulf Of Khambhat, on the southern bank of river Tapi, about 9 miles upstream. The port is well connected with Udhna GIDC and Pandesara Industrial Estates which are about 7.5 miles away. The port is also well connected with Surat by State highway No.66 via rail and roadways.
Location : Lat 21˚08’N, Long 072˚65’E
Terminal Information- Port Of Magdalla
|
East (MAGDALLA) |
Types of vessel visiting the terminal |
|
GMB Jetty No. 1 |
Mini Bulk Carriers/ barges and Tugs |
|
GMB Jetty No. 2 Ultra Tech Cement Ltd |
Mini Bulk Carriers |
|
Essar Main Jetty |
Bulk Carriers/ Tugs and barges/ LNG |
|
Reliance Jetties |
Gas Carriers |
|
Reliance - Single Buoy Mooring (S.B.M.) |
Oil & Chemical Tankers |
|
Larsen & Toubro Jetties |
Barges/tugs/RoRo/MBC etc |
|
Gujarat Ambuja Cement Ltd Jetty |
Mini Bulk Carriers |
|
KRIBHCO Jetty |
Barges & Tugs |
|
Hazira port Pvt. Ltd. (HPPL) |
LNG Carriers |
|
Adani Hazira Port Pvt Ltd |
Containers /Bulk / Oil/ Chemical / LPG Carriers |
Port of Magdalla VHF Marine Frequencies in use:
|
East (MAGDALLA) |
VHF Channel |
CALL SIGN |
|
VTS |
09/16 |
Khambhat VTS East |
|
RIL Hazira |
67 |
RIL Hazira Port |
|
RIL SPM |
13 |
RIL SPM |
|
AHPPL |
69 |
Adani Control |
|
EBTL |
71 |
Essar Base |
|
Suhali Radio |
06 |
Suhali Radio |
Port of Magdalla Berths:
|
East (MAGDALLA) |
Length |
Depth |
Max. Draft |
Max. Size |
|
GMB Jetty No. 1 |
210.8 |
03 |
xx |
xx |
|
GMB Jetty No. 2 Ultra Tech Cement Ltd. |
143.5 |
03 |
xx |
xx |
|
Essar Main Jetty |
||||
|
M/s Essar Steel Ltd |
241.7 |
14 |
14.0/13.0* |
305 |
|
M/s EBTL (1st Expansion) |
241.6 |
14 |
14.0/13.0* |
305 |
|
M/s EBTL (2nd Expansion) |
241.6 |
15.5 |
14.0/13.0* |
305 |
|
M/s Essar LPG Jetty |
241.6 |
15.5 |
9 |
170 |
|
M/s Reliance Industries Ltd. |
||||
|
Ethylene Jetty |
100 |
04 |
3.5 |
104 |
|
II Gas Jetty |
100 |
04 |
3.5 |
104 |
|
EDC - RORO |
xxx |
04 |
3.5 |
105 |
|
Reliance - Single Point Mooring (S.P.M.) |
xxx |
25 |
15 |
265 |
|
Larsen & Toubro Jetties |
241.6 |
14 |
10.5 |
200 |
|
Gujarat Ambuja Cement Ltd. Jetty |
114 |
4.5 |
3.8 |
97 |
|
KRIBHCO Jetty |
147 |
xx |
xx |
xx |
|
Hazira Port Pvt. Let. (HPPL) |
800 |
13.3 |
12.3 |
317 |
|
Adani Hazira Port Ptvt. Ltd. |
||||
|
MP-1 |
300 |
13.2 |
14.0 |
320 |
|
MP-2 |
300 |
13.5 |
14.0 |
290 |
|
MP-3 |
260 |
13.1 |
14.0 |
225 |
|
MP-3B |
260 |
12.6 |
14.4 |
150 |
|
CT-1 |
315 |
13.4 |
14.0 |
324 |
|
CT-2 |
315 |
12.3 |
14.0 |
250 |
Port of Magdalla - Outer anchorage:
The deep-water anchorage is about 10 nautical miles SW from the Magdalla Port as marked on Indian Charts No. 2019 and 2101. An anchorage area for general lighterage is bounded by following points:
|
POINT |
GENERAL LIGHTERAGE AREA |
TANKER LIGHTERAGE AREA |
L.P.G. AND CHEMICAL LIGHTERAGE AREA |
|||
|
Latitude |
Longitude |
Latitude |
Longitude |
Latitude |
Longitude |
|
|
A |
21˚ 02.0’ N |
072˚ 34.5’ E |
21˚ 06.0’ N |
072˚ 35.0’ E |
21˚ 06.0’ N |
072˚ 35.0’ E |
|
B |
20˚ 59.0’ N |
072˚ 34.5’ E |
21˚ 06.0’ N |
072˚ 33.5’ E |
21˚ 06.0’ N |
072˚ 33.5’ E |
|
C |
20˚ 59.0’ N |
072˚ 36.5’ E |
21˚ 05.0’ N |
072˚ 33.5’ E |
21˚ 05.0’ N |
072˚ 33.5’ E |
|
D |
21˚ 02.0’ N |
072˚ 36.5’ E |
21˚ 05.0’ N |
072˚ 35.0’ E |
21˚ 05.0’ N |
072˚ 35.0’ E |
Remark:Maximum permissible draft in the General Lighterage Area is 17.0 mtrs.
Single Point Mooring (RIL)
|
Latitude |
Longitude |
Max Permissible Draft |
|
|
SPM |
21o 08’ 56.51 N |
072 o 34’ 24.94 E |
11.5 mtrs |
PILOTAGE INSTRUCTIONS FROM TERMINALS OF MAGDALLA PORT
Pilotage: Pilotage is not compulsory for anchoring at anchorage. But Pilot is compulsory for vessel coming to ESSAR Terminal, AHPPL, HPPL & Ril SPM.
Pilot boarding positions at Magdalla Port
|
Sl No |
Pilot boarding Position |
Remarks |
|
01 |
20ᵒ 54.0' N, 72ᵒ 35.0'E |
Hazira LNG Terminal(Normal Days) |
|
02 |
20ᵒ 59.0' N, 72ᵒ 34.2'E |
Hazira LNG Terminal (Monsoon Days) |
|
03 |
21ᵒ 00.0’N, 72ᵒ 38.0’E |
Vessels bound for ESSAR |
|
04 |
21ᵒ 02.0' N, 72ᵒ 34.0'E |
Vessels bound for AHPPL |
|
05 |
21ᵒ 00.0’N, 72ᵒ 38.0’E |
Vessels bound for RIL SPM |
